Description

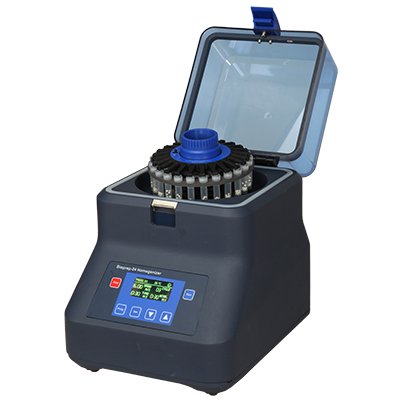

Fast, effective and reproducible homogenization of a wide range of samples, including tissues and cells hard to lyse. It also owns extraordinary power for the processing of even impact resistant samples such as bones or cartilage._x000D_
_x000D_
Using disposable sample tubes pre-filled with a variety of lysing beads, the Bioprep-24 vigorously and uniformly shakes the tubes providing an efficient, consistent, high-yield and quality homogenization usually in less than 35 seconds._x000D_
_x000D_
Typical Samples:_x000D_
— Animal, Plant, Human cells;_x000D_
— Micro-organisms;_x000D_
— Drugs, polymers, lotions, etc._x000D_
— Soil and sediments;_x000D_
— Swabs and feces_x000D_
— Bone, brain, tumors_x000D_
— Bacterial gram + or -_x000D_
— Yeast, fungi, spores_x000D_
— Seeds, roots_x000D_
— Feces, swabs_x000D_
_x000D_
Applications:_x000D_
Any researcher who requires genomic DNA, RNA or recombinant protein as a starting material will benefit from the unit system._x000D_
— Northern blot analysis, qPCR and microarrays_x000D_
— Optimization of recombinant protein expression_x000D_
— Libray synthesis and Southern blots_x000D_
— Pathogen screening of soil or water_x000D_
— RT-PCR and differential display_x000D_
— Environmental surveys_x000D_
— Verification of food safety_x000D_
_x000D_
How to use beads_x000D_
| 1.4mm&2.8mm Ceramic Beads | 3mm&6mm Metal Beads | 1mm&3mm Glass Beads |
| Ideal for soft animal, plant or human tissues:_x000D_ • brain_x000D_ • liver_x000D_ • skin_x000D_ • leaves_x000D_ • gonad_x000D_ • muscle, etc. |
Ideal for any hard tissue types:_x000D_ • hair_x000D_ • teeth_x000D_ • bones_x000D_ • seeds_x000D_ • corn_x000D_ • rice_x000D_ • nail, etc |
Ideal for microorganisms Optimal for:_x000D_ • spores_x000D_ • fungi_x000D_ • yeast_x000D_ • e-coli, etc. |
| We will offer the Lysing Kits which are available with Plastic or Stainless Steel pre-filled sample tubes in future | ||
_x000D_

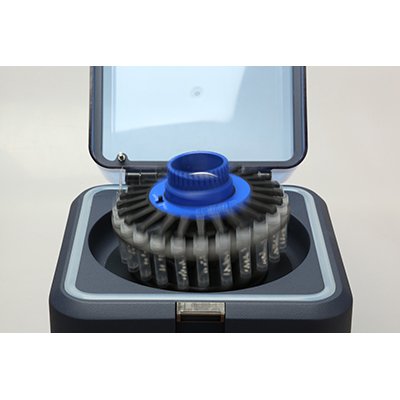

Roto Adapter_x000D_
Rotor for 24×2.0ml_x000D_
_x000D_
_x000D_
Rotor for 12×5.0ml_x000D_
_x000D_
_x000D_
Features:_x000D_
1. “3D Rotating High Speed Motion” for quick disruption of those fibrous tissues and resistant cells_x000D_
2. 50 programmable memory settings and user optional condition settings_x000D_
3. A wide range of rotation speed settings from 4 to 7 m/s, increment 0.05m/s_x000D_
4. Brushless motor realizing no brush particle generation_x000D_
5. Easy to remove sample tube holder and fix sample tubes_x000D_
6. Easy to monitor the disruption process through the clear lid_x000D_
7. Simultaneously homogenize:_x000D_
Bioprep-6 6*2ml tubes or 2*5ml tubes_x000D_
Bioprep-24 24*2ml tubes or 12*5ml tubes_x000D_
8. Disposable tubes ensure no threat of cross-contamination or sample degradation_x000D_
9. The Bioprep-6 and Bioprep-24 vigorously and uniformly shakes the tubes providing an efficient, consistent, high yield and quality homogenization usually in 35s or less_x000D_
_x000D_
Technical Data:_x000D_
_x000D_
_x000D_
| Type | Bioprep-24 |
| Display | OLED |
| Speed Range(m/s) | 4.00m/s~7.00m/s, increment 0.05m/s |
| Speed Range (rpm) | 2430rpm — 4260rpm, increment 10rpm |
| Cycle Duration | 1s — 90s, increment 1s |
| Pause time | 1s — 120s, increment 1s |
| Cycle | 10 |
| Programmable | 50 |
| Samples | 24 x 2ml/1.5ml/0.5ml or 12 x 5ml grinding tube |
| Acceleration Time | <4s |
| Deceleration Time | <4s |
| Noise | <70 db |
| Power | 500W |
| Dimensions (W×D×H) | 280×360×385 mm |
| Weight (kg) | 25.0 kg |
| Power Supply | AC100~240V, 50/60Hz |
_x000D_
Accessories:_x000D_
| Code | Description |
| AS-13010-01 | Rotor for 24×2.0ml |
| AS-13010-02 | Rotor for 6×5.0ml |
| AS-13010-03 | 2.0ml tubes |
| AS-13010-04 | 5.0ml tubes |
| AS-13010-05 | Φ1.4mm Silica beads |
| AS-13010-06 | Φ2.8mm Silica beads |
| AS-13010-07 | Φ3mm Metal beads |
| AS-13010-08 | Φ6mm Metal beads |
| AS-13010-09 | Φ1mm glass beads |
| AS-13010-10 | Φ3mm glass beads |
