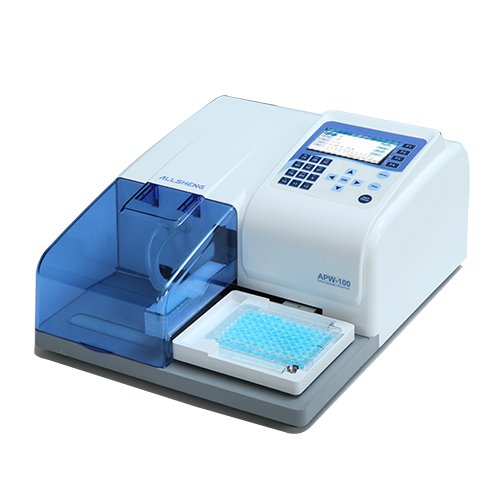

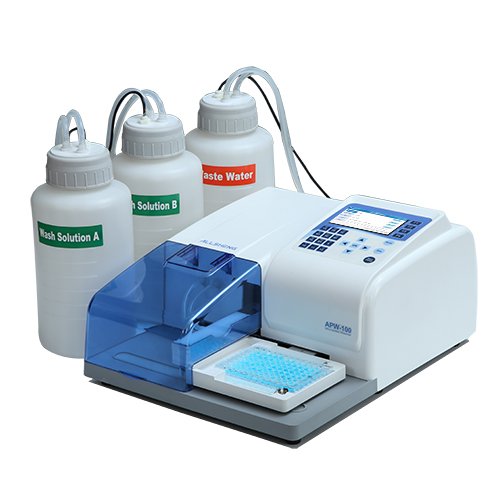

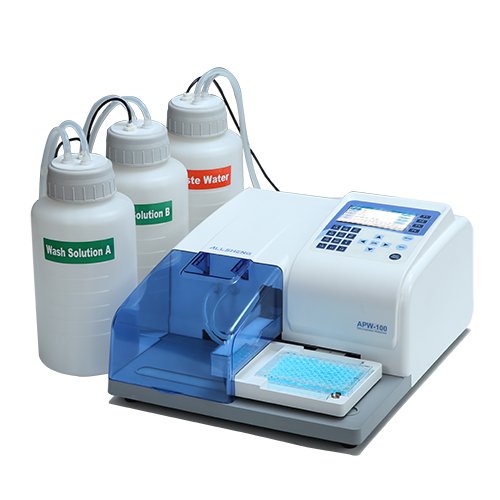

Description
The APW-100 Microplate Washer is easy, convenient and versatile to use for washing microplate in ELISA assays. It efficiently remove liquid from wells. Low residual volumes eliminate high background signal to ensure reliable assay results. Washing performance can be optimized by adjusting wash parameters, such as wash cycles, soaking time, shaking speed, dispense and aspiration height and speed._x000D_
_x000D_
Safety and reliable feature:_x000D_
The APW-100 is equipped with liquid position sensor to avoid the washing liquid used up or waste liquid from overflow, minimize the risk and avoid the liquid being sucked into the pump to break the equipment. Besides it has shaking function which can improve the washing efficiency._x000D_
_x000D_
The APW-100 Microplate Washer has 4.3 inch LCD display with friendly interface, U-disk can be used to transfer the data between the PC and the washer or between two washers, it can also be used to upgrade the software. The washing head can be replaced easily for different kinds of microplates._x000D_
_x000D_
Easy Operation:_x000D_
The APW-100 has 4.3 inch LCD display with friendly interface, U-disk can be used to transfer the data between the PC and the washer or between two washers, it can also be used to upgrade the software. The washing head can be replaced easily for different kinds of microplates._x000D_
_x000D_
Features_x000D_
_x000D_
1. Low residual liquid, each well ≤0.5μl_x000D_
2. Compatible for microplates: flat, U, V, C bottom_x000D_
3. 4.3 inch color LCD display, easy to operate_x000D_
4. Washing head position can accurate to 0.1mm_x000D_
5. Wash parameters can be set to make sure the best washing effect_x000D_
6. Support external U-disk, for program exporting_x000D_
7. 100 programs can be saved_x000D_
8. Uniform volume mark make it easy to measure the liquid_x000D_
9. Automatic alarm for full liquid_x000D_
10. Strainer in the pipeline and automatic washing functions avoid the liquid blocking the pipeline_x000D_
_x000D_
Technical Data_x000D_
| Model | APW-100 |
| Residual liquid | ≤0.5μl |
| Washing heads | 1×8 or 1×12 heads |
| Plate types | Flat, U, V, C bottom |
| Washing volume | 50~2000μl, increase by 50μl |
| Washing method | Central |
| two points | |
| multi points | |
| Washing times | 99 times |
| Washing channels | 3 |
| bottle | 3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle |
| Dispense accuracy | CV≤2.0% at 300μl |
| (CV≤1.5% for 96 wells) | |
| Soaking and Shaking time | 19’59” |
| Number of wash protocols | up to 100 |
| Data connection | USB |
| Dimensions(W x D x H) | 345 x 460 x 200 mm |
| Weight | 11.5kg |
| Power supply | AC100/240V, 50/60Hz |
_x000D_
Accessories_x000D_
_x000D_
| Code | Description |
| AS-16010-00 | APW-100 Microplate Washer, 120V/240V |
| AS-16011-01 | 8 needles washing head |
| AS-16011-02 | 12 needles washing head |
| AS-16011-03 | Washing liquid bottle |
| AS-16011-04 | Waste liquid bottle |
