Description
Auto-Pure16A is a miniaturized magnetic bead method nucleic acid extraction and purification instrument, which is developed on the basis of Auto-pure20B and Auto-pure32A. A Auto-pure16A can accept 16 samples at most simultaneously, maximum sample volume is 1ml._x000D_
_x000D_
_x000D_
_x000D_
Features_x000D_
1. 4.3 inch touch screen, easy to use._x000D_
2. Temperature and protocols can be edited and saved according to different reagent requirements._x000D_
3. Short operation time: 15~40min per run_x000D_
4. High yield of nucleic acid with low magnetic bead loss and good repeatability of results._x000D_
5. UV disinfection, avoid cross contamination._x000D_
6. Open system which can apply to different magnetic bead extraction reagent._x000D_
7. APP software (Android system) which can monitor the system in real time through mobile device._x000D_
8. Using the PC software, user operate easily the machine._x000D_
9. Screw rod design which guarantee high operating accuracy; large guide rail design makes the structure more reliable._x000D_
10. With QR code identification function, special reagent can be recognized, no need to program or obtain protocols._x000D_
11. Small volume, suitable for extraction on site._x000D_
_x000D_
Technical Data_x000D_
| Type | Auto-Pure16A |
| Throughput | 1~16 |
| Process volume | 50~1000ul |
| Collection efficiency | >95% |
| Magnetic rod number | 16 |
| Purification accuracy | 100 copy sample positive rate>95% |
| Stability | CV<5% |
| Plate types | 96 Deepwell plate |
| Healting for lysis tube | Ambient temperature~120°C |
| Heating for elution tube | Ambient temperature~120°C |
| Operation | 4.3 inch color touch screen |

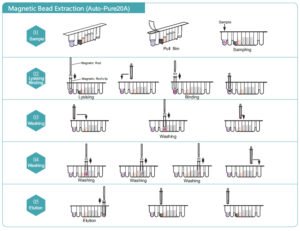

| Extraction steps | Lysis, Sample binding, Washing and elution |
| Storage Capacity | more than 100 programs |
| Pollution Control | UV light |
| Lighting | Yes |
| Extension interface | 4 standard USB port, built-in SD card |
| Exhaust | Fan |
| Power Supply | 300W |
| Dimensions | 340×350×410mm |
| Weight | 18Kg |
_x000D_
Accessories_x000D_
_x000D_
| Code | Description |
| AS-17140-00 | Auto-Pure16A, AC120V/240V, 50/60Hz |
| AS-17031-01 | 96-Deepwell plate for Auto-Pure16A |
| AS-17031-02 | Magnetic rod’s tip for Auto-Pure16A |
