Description

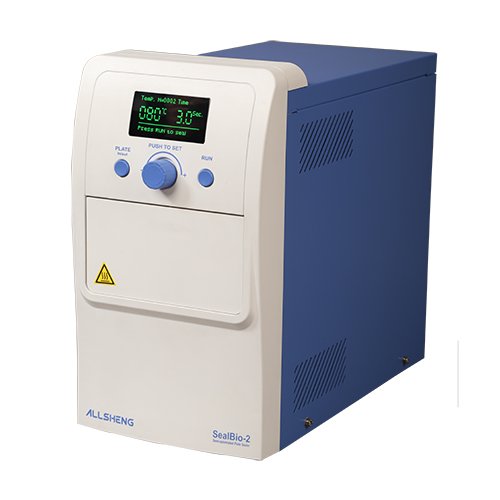

SealBio-2 Plate Sealer is a semi-automatic thermal sealer which is ideal for the low to medium throughput laboratory that requires uniform and consistent sealing of micro-plates. Unlike manual plate sealer , the SealBio-2 produces repeatable plate seals. With variable temperature and time settings, sealing conditions are easily optimized to guarantee consistent result, eliminating sample loss. The SealBio-2 can be applied in product’s quality control of many manufacture enterprise such as plastic film, food, medical, inspection institute, scholastic scientific research and teaching experiment. Offering complete versatility, the SealBio-2 will accept a full range of plates for PCR, assay or storage applications._x000D_
SBA-1 Standard plate adapter _x000D_
_x000D_
_x000D_
SBA-2 96-well PCR plate adapter_x000D_
_x000D_
_x000D_

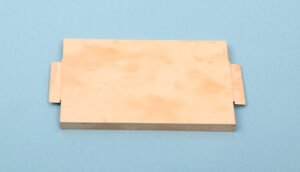

SBA – 3 Weighted seal platen_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
_x000D_
Highlights_x000D_
1.Format different micro well plates and heat seals_x000D_
2.Adjustable Sealing Temperature: 80 – 200°C_x000D_

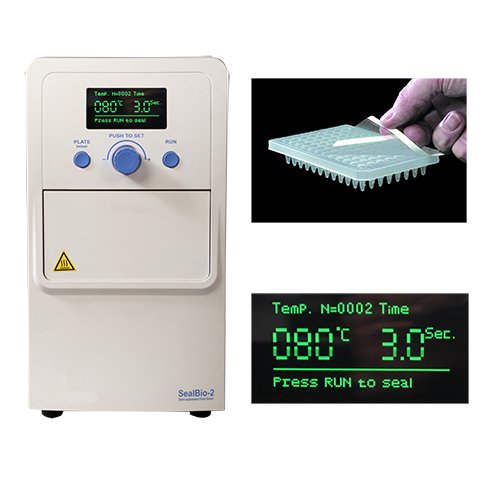

3.OLED display screen, high light and no visual angle limit_x000D_
4.Precise temperature, timing and pressure for consistent sealing_x000D_
5.Automatic counting function_x000D_
6.Plate adapters allow use of virtually any ANSI microplate or PCR plate_x000D_

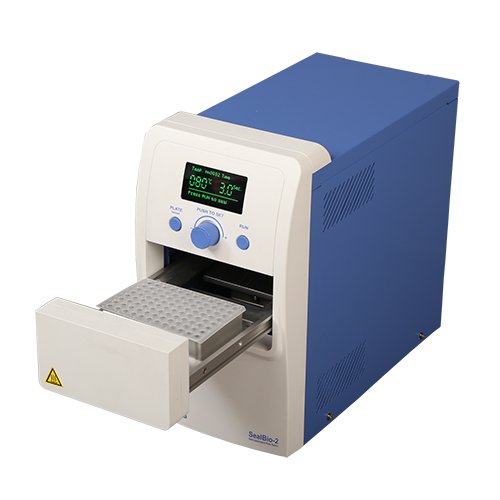

7.Motorized drawer and motorized sealing platen guarantee consistent good results_x000D_
8.Compact footprint: only 178mm wide x 370mm depth_x000D_
9.Power requirments: AC120V or AC220V_x000D_
_x000D_
Energy Saving Functions_x000D_
1.When the SealBio-2 is left idle more than 60min, it will automatically switch into stand-by mode during when the temperature of the heating element is reduced to 60°C to save energy_x000D_
2.When the SealBio-2 is left idle more than 120min, it will switch off automatically for safe. It will switch off the display and the heating element. then, the user can awaken the machine by pushing any button_x000D_
_x000D_
Controls_x000D_
Sealing time and temperature can be set by using the control knob, OLED display screen, high light and no visual angle limit._x000D_
1.Sealing time and temperature_x000D_
2.Sealing pressure can be adjustable_x000D_
3.Automatic counting function_x000D_
_x000D_
Security_x000D_
1.If a hand or objects stuck in the drawer when it’s moving, the drawer motor will automatically reverse. This feature prevents injury to the user and the unit_x000D_
2.Special and smart design on the drawer, it can be detached from the main device. So user can maintain or clean the heating element easily_x000D_
| Model | SealBio – 2 |
| _x000D_
Display
|
_x000D_
OLED
|
| _x000D_
Sealing temperature
|
_x000D_
80 ~ 200℃ (increment of 1.0 ℃)
|
| _x000D_
Temperature accuracy
|
_x000D_
±1.0°C
|
| _x000D_
Temperature uniformity
|
_x000D_
±1.0°C
|
| _x000D_
Sealing time
|
_x000D_
0.5 ~ 10 seconds (increment of 0.1s）
|
| _x000D_
Seal plate heights
|
_x000D_
9 to 48mm
|
| _x000D_
Input Power
|
_x000D_
300W
|
| _x000D_
Dimension (D x W x H)mm
|
_x000D_
370×178×330
|
| _x000D_
Weight
|
9.6kg |
| _x000D_
Compatible Plate Materials
|
_x000D_
PP (Polypropylene)
_x000D_ PS (Polystyrene)
_x000D_ PE (Polyethylene)
|
| _x000D_
Compatible plate types
|
_x000D_
SBS Standard plates, Deep-well plates
_x000D_ PCR plates (Skirted, semi-skirted and no-skirted formats)
|
| _x000D_
Heating Sealing Films & Foils
|
Foil-polyproylene laminate_x000D_ Clear polyester-polypropylene laminate_x000D_ Clear polymer_x000D_ Thin clear polymer |
_x000D_
Accessories_x000D_
_x000D_
| Code | Description |
| AS-15020-00 | Sealbio-2 AC220V, 50/60Hz,300W |
| AS-15021-01 | SBA-1 Standard plate adapter |
| AS-15021-02 | SBA-2 96-well PCR plate adapter |
| AS-15021-03 | SBA-3 Weighted sealing platen |
| AS-15021-11 | Seal-150 Peelable clear Seal |
| AS-15021-12 | Seal-200 Peelable Seal for storage |
| AS-15021-13 | Seal-300 Pierce Aluminum heating sealing film |
