Description

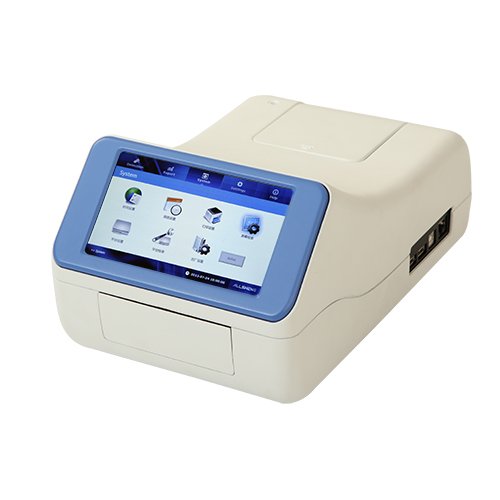

TSR-100 Test Strip Reader can distinguish the differences of colors from various biochemical reactions and analyze the reactants to provide quantitative clinical diagnosis. The diagnostic analysis can be applied for drugs of abuse, fertility, and disease test etc.. It can also be applied to test disease or distinguish drug residual in animals. To summarize, these readers provide a detection platform for rapid test applications._x000D_

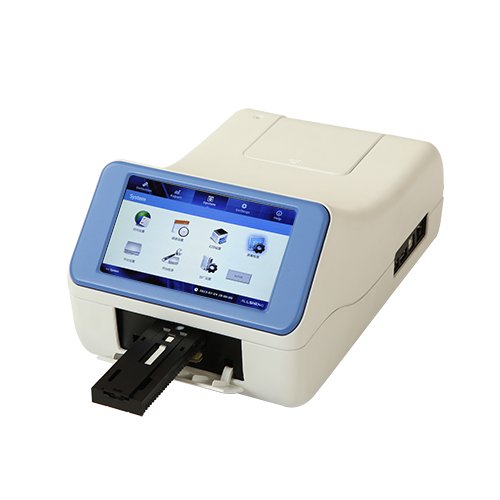

— Further to the test proceeding, the operator places the test cassette or the test strip into the reader’s cassette holder and depending on the selected reading mode, the evaluation process will be automatically initiated, the final results will be printed out by the internal printer._x000D_
— We offer an OEM business-to-business solution based on the reader for different test strip manufacturers._x000D_
— The reader is capable of reading up to 5 lines evaluating the Lateral Flow Colloidal Gold test cassettes and strips_x000D_
TSR-100 and TSR-200 test strip reader are suitable for test the immunochromatographic test strips. By using modern photoelectric technology and photo-diode to detect the intensity of the reflected light, the reader can detect the color of the strip, then calculate the quantity or concentration. It can avoid reading mistake by eyes and make rapid, high sensitivity when using reader to detect the color change of test strip._x000D_
_x000D_
Easy to use and high accuracy_x000D_

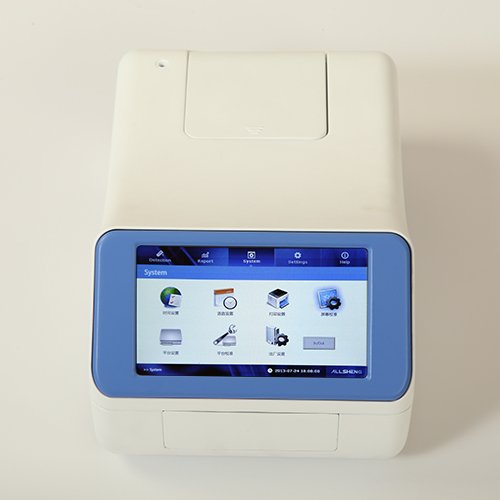

1. 6.2 inch touch screen for TSR-100_x000D_
2. Powerful program design, it is easy to be used_x000D_
3. Patented design offer good solutions guaranteed and excellent results_x000D_
4. Each testing result is available to check and it can show the graph of the result_x000D_
5. Build-in or external thermal printer_x000D_
6. Rapid instrument calibration_x000D_
_x000D_
Customization acceptable_x000D_
1. Equipped specialized software of different test strips, increase or decrease detection program according to the manufacturers requirements_x000D_
2. Support customization according to user needs_x000D_
3. Test card and test strip for user flexible choice_x000D_
4. Desktop and portable for user choice:_x000D_
TSR-100 Desktop test strip reader_x000D_
TSR-200 Portable test strip reader_x000D_
_x000D_
Remark for Test Strip Reader_x000D_
1.Test strip reader must match the test strip, cooperate with the manufacturer of test strip_x000D_
2.Support customization according to test strip manufacturer needs_x000D_
3.Fluorescence detection must be provided excitation wavelength, emission wavelength and life of fluorochrome_x000D_
_x000D_
Detection principle_x000D_
Standard test strip structure as right picture, these equipment detect sample positive or negative (concentration) by measuring reflection of light intensity of T and C line._x000D_
These are also suitable for some test strip with several T lines. The TSR-100 can test 5 T lines and the TSR-200 can test 4 lines_x000D_
_x000D_
Used for:_x000D_
— For all kinds of gold immunochromatography reagent kits, qualitative, semi-quantitative, fully quantitative measurements for immunochromatographic reagent kits._x000D_
_x000D_
Applications:_x000D_
— Drugs of Abuse Tests_x000D_
— Fertility Tests_x000D_
— Infectious Disease and Health Tests_x000D_
— Animal Disease and Drug Residual, etc._x000D_
_x000D_
Features_x000D_
1. 6.2 inch touch screen and smart operation system for easy use_x000D_
2. High-sensitivity measurement with high repeatability_x000D_
3. Supports a wide range of reagents as well as reagent development_x000D_
4. Compatible with different reagent housing configurations_x000D_
5. Large built-in memory can save more than 10,000 measurement records which you can check out at anytime_x000D_
6. Colorimetric detection: Colloidal gold, colored latex beads, carbon etc._x000D_
7. Automatic line position detection and intensity calculation_x000D_
8. Powerful Software functions for the manufacturer of rapid tests and for End-users_x000D_
9. OEM service is available according to different reagent kits or fluorescence detection_x000D_
10. Internet, wireless internet function extendable_x000D_
11. Strict calibration system for stable results_x000D_
12. Automatically identify CT line position, Error correction range ±3mm_x000D_
13. Fast and accurate test reduce human errors, automatic calculate concentration and judgment_x000D_
14. Accurately identify one or more( up to 5) T lines value and CT ratio_x000D_
15. Large built-in memory can save 10000 records_x000D_
16. Build-in thermal printer_x000D_
17. Powerful software, build-in 2 systems software (one for the end-user, another one for the reagent manufacturer)_x000D_
_x000D_
Technical Data_x000D_
_x000D_
| Modal | TSR-100 |
| Wavelength | 525±30nm (Base the requirement of customer) |
| Detector Type | Photodiode |
| Test item | Immunochromatographic test cards or wide_x000D_ 2~6mm test strips |
| Parameter of test item | According to the requirement of test strips |
| Delay-time test | Set delay-time, then, the test strip complete the reaction in the reader, timed automatic detection |
| Detection result | Multi-algorithm, quantitative, Selected results, save and print results |
| Test Speed | 240 strips each hour |
| Repeatability | CV<2% |
| Stability | Drift value≤3% in 2 hours |
| Data analysis | Qualitative, quantitative, semi-quantitative, Multi-algorithm |
| Display | 6.2 inch touch screen |
| Connections | 2 x USB |
| Number of T-line | 5 lines |
| Printer | Built-in Printer |
| Save Type | Built-in SD card (2GB) |
| Power Adapter | DC12V 4A |
| Power | 20W |
| Dimensions (W x D x H) mm | 320 x 195 x 156 mm |
| Weight | 4kg |
_x000D_
Accessories_x000D_
_x000D_
| No | Code | Description |
| 1 | AS-12010-00 | TSR-100 Test Strip Reader, DC24V 2A (Standard: Adapter S-100) |
| 2 | AS-12011-00 | Adapter C-100 for TSR-100 |
