Description

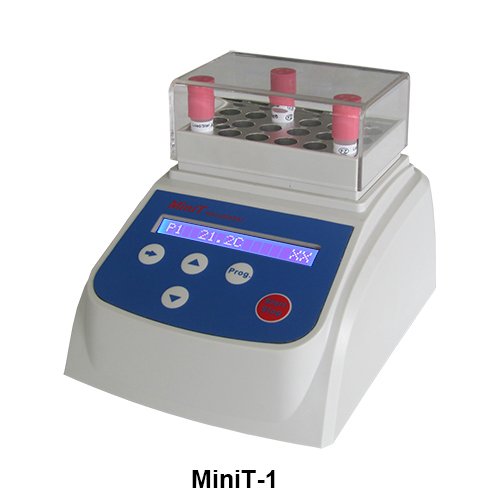

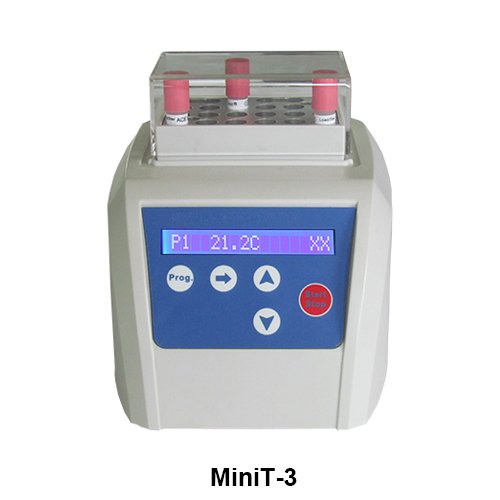

The MiniT-1 / MiniT-3 Biological Indicator Incubator are designed for temperature incubation of the EO Biological Indicators. These provide easy verification of incubation temperature._x000D_
_x000D_
1. The Incubator have many wells for placement of the biological indicator vials and the wells can be custom- made. User can set the incubating temperature._x000D_
2. Materials: Aluminum block_x000D_
3. Well Diameter: According to custom-making_x000D_
_x000D_
Features_x000D_
1. LCD display_x000D_
2. MiniT-1 is with DC12V power_x000D_
MiniT-3 is with DC24V power_x000D_
3. Operating Temperature Range:_x000D_
MiniT-1: From 5°C above ambient to 80°C_x000D_
MiniT-3: From 5°C above ambient to 100°C_x000D_
3. Time Range: 1min ~ 99h59min_x000D_
4. Temp. Control Accuracy: ≤±0.5°C_x000D_
5. Display Accuracy: 0.1°C_x000D_
6. Heating Time: < 6min (from 20°C to 57°C)_x000D_
7. Temp. Control Accuracy @57°C: ≤±0.35°C_x000D_
8. The Incubator have many wells for placement of the biological indicator vials and the wells can be custom-_x000D_
made. User can set the incubating temperature and time._x000D_
9. Material: Aluminum block_x000D_
_x000D_
Technical Data_x000D_
_x000D_
| Model | MiniT-1 | MiniT-3 |
| Temperature Control Range | RT+5°C~80°C | RT+5°C~100°C |
| Timer Range | 1min~99h59min | 1min~99h59min |
| Temperature Control Accuracy | ±0.5°C | ±0.5°C |
| Display Accuracy | 0.1°C | 0.1°C |
| Heating Time (25°C to 57°C) | ≤6min | ≤6min |
| Temp.Control Accuracy @57°C | ±0.35°C | ±0.35°C |
| Dimensions (DxWxH) mm | 110 x 150 x 80 | 120 x 152 x 112 |
| Net Weight | 0.5kg | 0.85kg |
_x000D_
Accessories_x000D_
_x000D_
| Code | Type | Description |
| AS-09021-01 | A-MiniT-1 | 15xΦ10mm |
| AS-09021-02 | B-MiniT-1 | 12xΦ12mm |
| AS-09021-03 | C-MiniT-1 | 6xΦ15mm |
| AS-09021-04 | D-MiniT-1 | 6xΦ16mm |
| AS-09021-05 | E-MiniT-1 | 24xΦ8.8mm |
| AS-09021-06 | F-MiniT-1 | 18xΦ9mm |
