Description

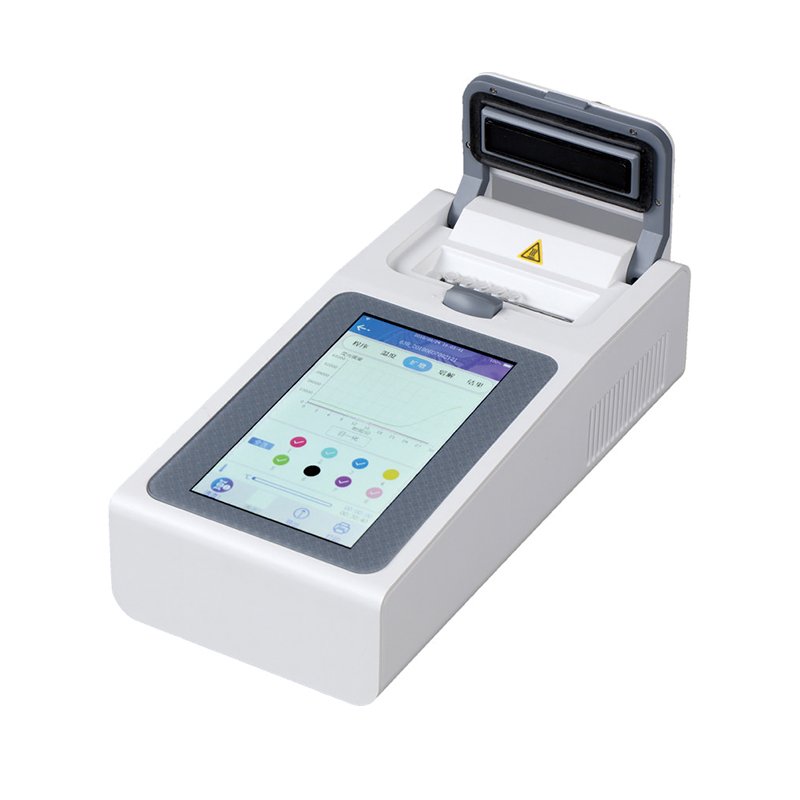

Gene-8C/Gene-8C2 is an Isothermal fluorescence PCR instrument, it is a compact, lightweight, low cost, stand alone, sensitive instrument suitable for field based and point of care diagnostic applications._x000D_
_x000D_
The Gene-8C/Gene-8C2 is a portable instruments that provides measurement of one fluorophore, and the Gene-8C2 provide measurement of two fluorophores._x000D_
We designed these to run any isothermal amplification method that employs target detection by fluorescence measurement. The Gene-8C/Gene-8C2 boast low power requirements and includes a rechargeable Lithium-polymer battery that can keep it running for 2-5 hours._x000D_
_x000D_
Gene-8C/Gene-8C2 have a 7inch touch screen. Realtime temperature and fluorescence data are displayed graphically and in real-time during a run and all of the_x000D_
data are held in the instrument’s large internal Flash_x000D_
memory. These data are permanently stored and can be reviewed at any time after the run has finished or uploaded to a PC or an android mobile via USB link or WIFI._x000D_
_x000D_
Features_x000D_
1. Small footprint, low-cost and easy to use, suitable for bench top and field applications_x000D_
_x000D_
2. Purpose-designed sophisticated instruments that support any isothermal DNA/RNA amplification method employing fluorescence readout_x000D_
_x000D_
3. 7 inch touchscreen, and offers stand-alone operation, it no need for a host computer_x000D_
_x000D_
4. Support eight standard 0.2ml tubes_x000D_
_x000D_
5. One channel or two channel fluorescence detection per tube_x000D_
_x000D_
6. Easy to use advanced desktop software and APP software (Android mobile) for the test configuration management and export_x000D_
_x000D_
7. Testing temperature range: RT. to 99℃_x000D_
_x000D_
8. PC software, APP software and built-in software for powerful and validated data analysis and review_x000D_
_x000D_
9. Easy access to data via USB interface and WIFI_x000D_
_x000D_
10. Use independently via touch screen, link to computer via a USB cable or link to android mobile via WIFI_x000D_
_x000D_
11. To link printer via USB cable and print the text data and results which you require_x000D_
_x000D_
12. Mains or battery-powered_x000D_
_x000D_
Technical Data_x000D_
_x000D_
| Model | Gene-8C | Gene-8C2 |
| Sample Number | 8 wells (1×8 strip) | 8 wells (1×8 strip) |
| Sample Volume | 15ul-150ul | 15ul-150ul |
| Touchscreen | 7 inch | 7 inch |
| Temperature control range | ambient – 99℃ | ambient – 99℃ |
| Temperature accuracy | ±0.1℃ | ±0.1℃ |
| Temperature uniformity | ±0.15℃ | ±0.15℃ |
| Heating speed | 2℃/S | 2℃/S |
| Cooling speed | 2℃/S | 2℃/S |
| Channels | one | two |
| Optics source | F1: 470nm | F1: 470nm F2: 590nm |
| Detection | F1: 525nm | F1: 525nm F2:630nm |
| Power Adapter | DC15V 8A | DC15V 8A |
| Dimensions (WxDxH) mm | 145x305x100mm | 145x305x100mm |
| Weight | 1.9kg | 1.9kg |
_x000D_
Accessories_x000D_
_x000D_
| Code | Description |
| AS-20010-00 | Gene-8C Isothermal Fluorescence PCR |
| AS-20020-00 | Gene-8C2 Isothermal Fluorescence PCR |
| AS-20011-01 | Charger for Gene-8C/8C |
