Description

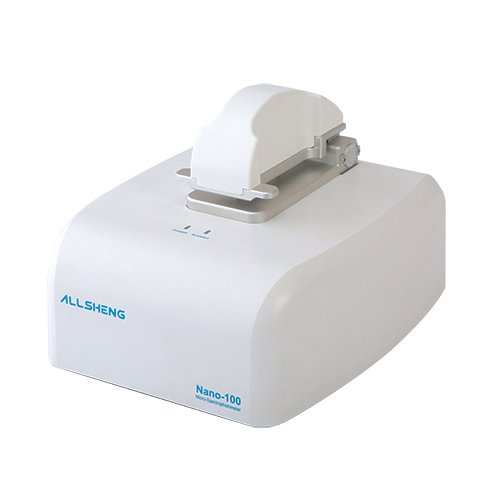

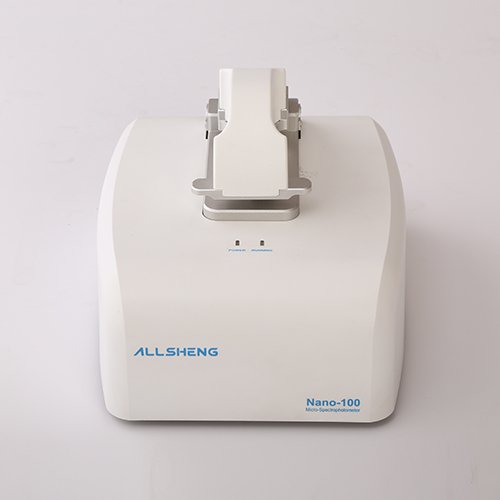

The Nano-100 is a perfect instrument for micro-volume UV-VIS spectrophotometer. It can accurately measure DNA, RNA and Oligonucleotide concentrations, protein assays etc.. The Nano-100 utilizes CCD detector, a light source for long lifetime Xenon lamp, together with simple software. Simply pipette 0.5~2μl sample onto the pedestal, and the measurement can be completed within 5 seconds._x000D_
_x000D_

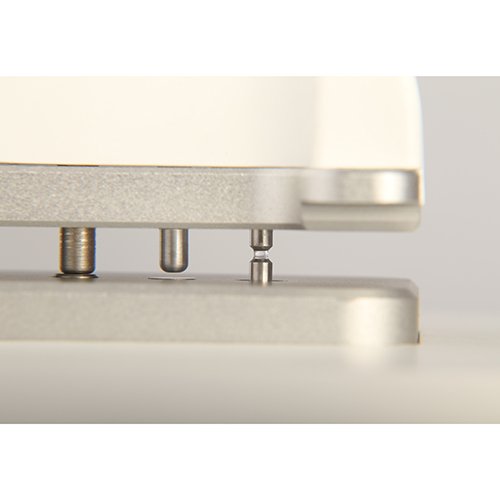

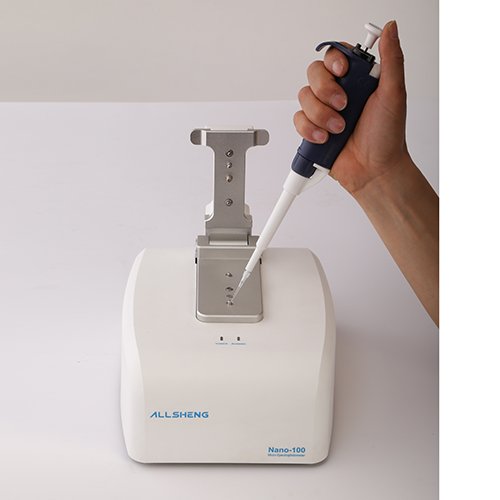

Adding Sample_x000D_
_x000D_
_x000D_
Measuring Sample_x000D_
_x000D_
_x000D_
Quick and easy cleaning_x000D_
_x000D_
_x000D_
Features_x000D_
_x000D_
1. Turn on and instantly measure without lamp warm up time_x000D_
_x000D_
2. Full range of wavelength (200-800nm) with scan capability from 200-800nm within 5sec._x000D_
_x000D_
3. User-friendly software with free software updates_x000D_
_x000D_
4. Simply pipette a sample onto the pedestal, measure, wipe the pedestal_x000D_
_x000D_
5. Direct micro-volume measurement with only 0.5-2ul sample required to accurately determinate nucleic acids and protein concentrations_x000D_
_x000D_
6. Long life Xenon flash lamp, 10 flashes, up to 10 years_x000D_
_x000D_
7. No cell or cuvette and expensive consumable required_x000D_
_x000D_
8. Detects Nucleic Acids up to 4500ng/ul (dsDNA)_x000D_
_x000D_
9. 3864-Element linear silicon CCD array_x000D_
_x000D_
Technical Data_x000D_
_x000D_
| Model | Nano-100 |
| Wavelength Range | 200~800nm |
| Sample Size | 0.5~2.0ul |
| Path Length | 0.2mm (For high concentration measurement)_x000D_ 1.0mm (For ordinary) |
| Light Source | Xenon flash lamp |
| Detector Type | 3864-element linear silicon CCD array |
| Wavelength Accuracy | 1nm |
| Spectral Resolution | ≤3nm (FWHM at Hg 546nm) |
| Absorbance Precision | 0.003Abs |
| Absorbance Accuracy | 1% (7.332Abs at 260nm) |
| Absorbance Range | 0.02 – 90A |
| Detection Range | 2~4500ng/ul (dsDNA) |
| Measurement Time | <8s |
| Data Output | Connect PC |
| Dimensions (W x D x H)mm | 200 x 250 x 166 |
| Weight | 2.6kg |
| Sample Pedestal Material | Aluminum alloy and Quartz fiber |
| Operating Voltage | 24VDC |
| Operating Power Consumption | 20W |
| Standby Power Consumption | 5W |
| Software Compatibility | Win XP, Windows 7, Windows 8 |
