Description

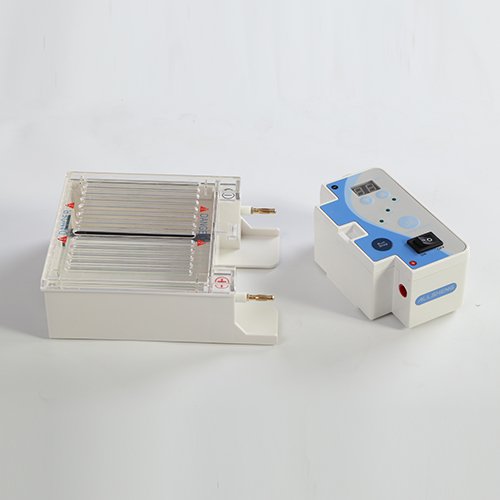

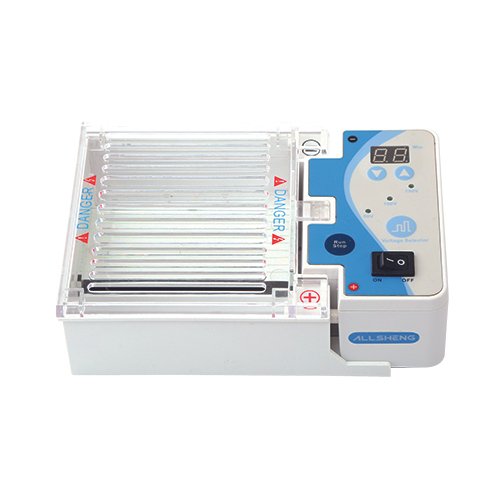

Mini-ES Mini Electrophoresis System is specifically designed for DNA and RNA electrophoresis. Voltages 35V/50V/100V, compact, lightweight and easy to operate are its features._x000D_
A magnetic sensor allows current to flow to the electrodes only when the lid is in place. If the lid is removed while the system is operating, it will be shut down immediately. It’s ideal for many applications, including Northern and Southern blotting, Cosmic library restriction analysis microsatellite analysis PCR fragment analysis, DNA fingerprinting and high-throughput analysis._x000D_
_x000D_
Features_x000D_
1. Input Power: AC100~120V 50~60Hz or AC220~240V with transformer 50~60Hz_x000D_
2. Output Power: DC35V/DC50V/DC100V_x000D_
3. Bath Dimensions (WxDxH): 110x121x43mm_x000D_
4. Volume of Bath: 230ml_x000D_
5. Construction of Bath: PC+ABS with high temperature resistance_x000D_
6. Max.Power:40W_x000D_
7. Timer range:1min~99min_x000D_
8. Overall Dimensions (WxDxH):190x130x60mm_x000D_
_x000D_
Technical Data_x000D_
_x000D_
| MODEL | Mini-ES |
| Input Power | Mini-ES1: AC100~120V 50~60Hz_x000D_ Mini-ES2: AC220~240V with transformer 50~60Hz |
| Output Power | DC35V/DC50V/DC100V |
| Bath Dimensions (WxDxH) | 110x121x43mm |
| Volume of Bath | 230ml |
| Construction of Bath | PC+ABS with high temperature resistance |
| Max. Power | 40W |
| Timer | 1~99min |
| Dimensions(mm) | 190x130x60mm |
_x000D_

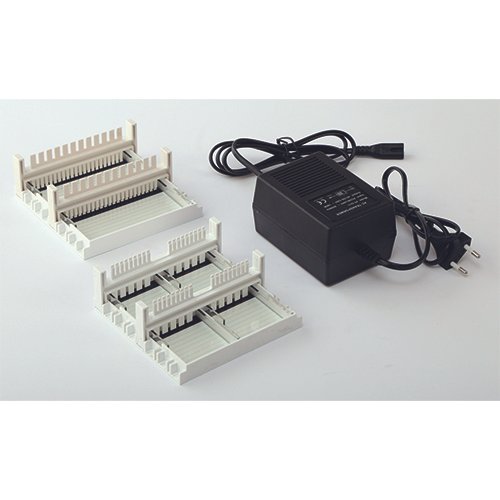

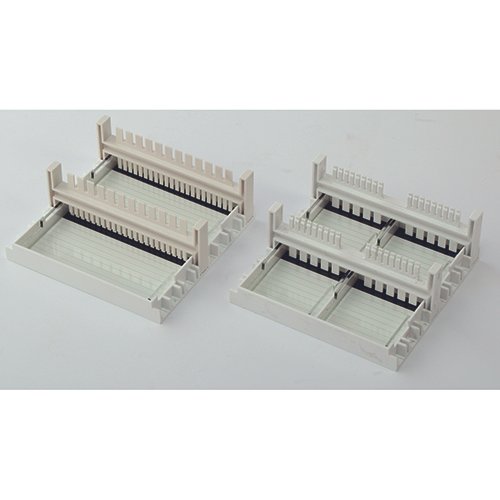

Accessories_x000D_
_x000D_
| Tooth wide (width x thickness x no.) | 3mmx1mmx22 |
| 5.6mmx1mmx12 | |
| 3mmx1mmx18 | |
| 5.6mmx1mmx10 | |
| Gel Dimension (WxD) | 126x126mm — 1pcs |
| Gel Migration Board (WxD) | 110x60mm — 2pcs |
| 54x60mm — 4pcs | |
| Transformer for AC200~240V | AC220V (input) / AC110V (output) |
