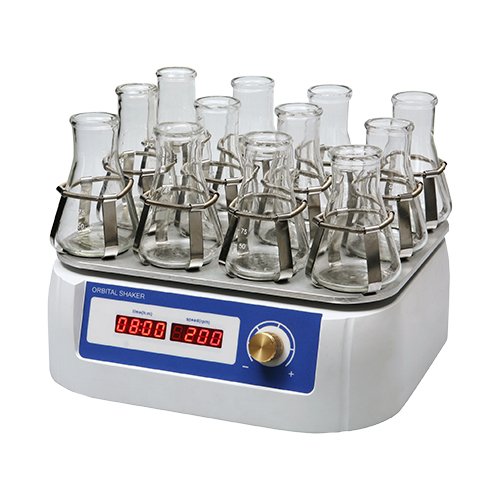

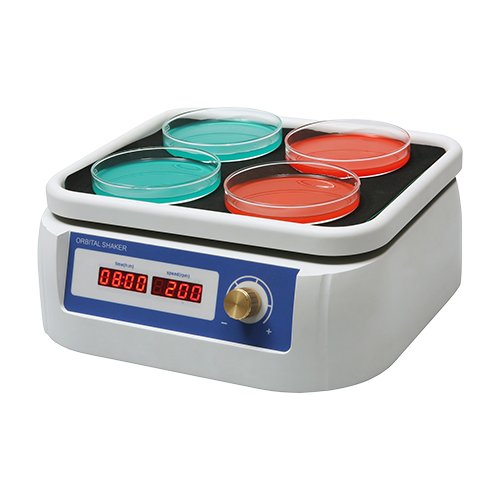

Description
1. Digital speed control_x000D_
2. Speed range 50-250 RPM_x000D_
3. Orbit 20 mm_x000D_
4. Digital timer 1min – 99h59min_x000D_
5. Universal platform, flat platform or platforms with clamps (see below)_x000D_
6. Maximum load capacity 2.5 kg_x000D_
7. Orbital Shaker can be used in a cold room or incubator_x000D_
8. Operating ambient: temperature range +5°C to +40°C_x000D_
9. Overall dimensions: 280 x 270 x 110 mm_x000D_
10.Weight: 7.2kg_x000D_
11.Power supply: DC24V_x000D_
_x000D_
Platforms for OS-200_x000D_

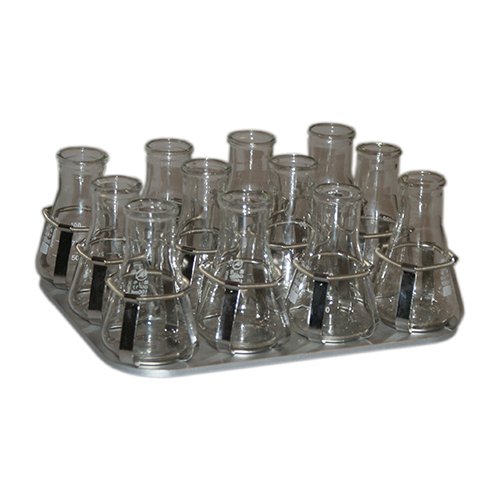

P P 1 2 – 1 0 0 Platform with clamps for flasks, 100-150ml_x000D_

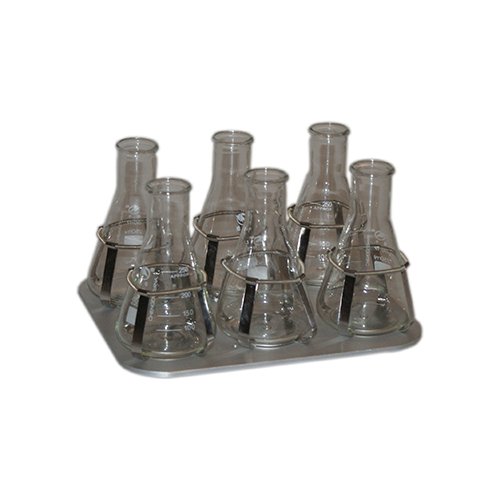

P P 0 6 – 2 5 0 Platform with clamps for flasks, 250-300ml_x000D_

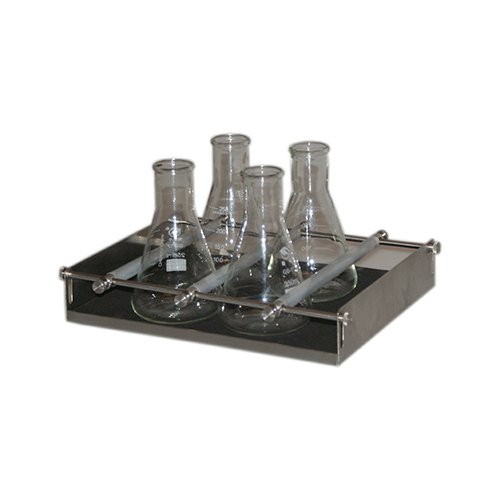

U P – 1 Universal platform with adjustable bars for different types of flasks, bottles_x000D_

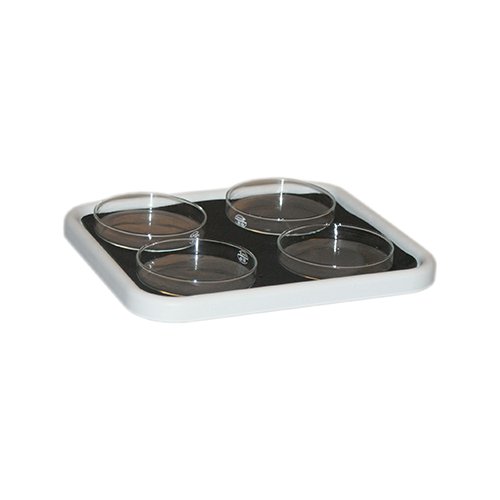

P P – 1 Flat platform with non-slip rubber mat_x000D_
_x000D_
Technical Data_x000D_
_x000D_
| Model | OS-200 | OS-100 |
| Shaking Speed | 50~250rpm | 50~300rpm |
| Orbit | 20mm | 10mm |
| Independent timer | 1min~99h59min | 1min~99h59min |
| Load capacity | See below table | See below table |
| Load capacity | 2.5kg | 3.0kg |
| Motor | DC brushless | DC brushless |
| Operating ambient | 4-45°C | 4-45°C |
| Dimension(L x W x H) mm | 280 x 270 x 110 | 280 x 270 x 110 |
_x000D_
Accessories_x000D_
_x000D_
| Code | Description |
| AS-04021-01 | PP-1 Flat platform with non-slip rubber mat |
| AS-04021-02 | PP12-100 Platform with clamps for flasks, 100-150ml |
| AS-04021-03 | PP06-250 Platform with clamps for flasks, 250-300ml |
| AS-04021-04 | UP-1 Universal platform with adjustable bars for |
| different types of flasks, bottles | |

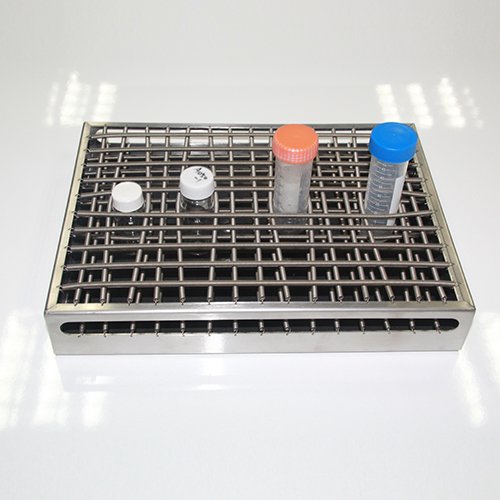

| AS-04021-05 | MP-1 Platform with springs |
